RESIN TRANSFORMERS
RESIN TRANSFORMERS

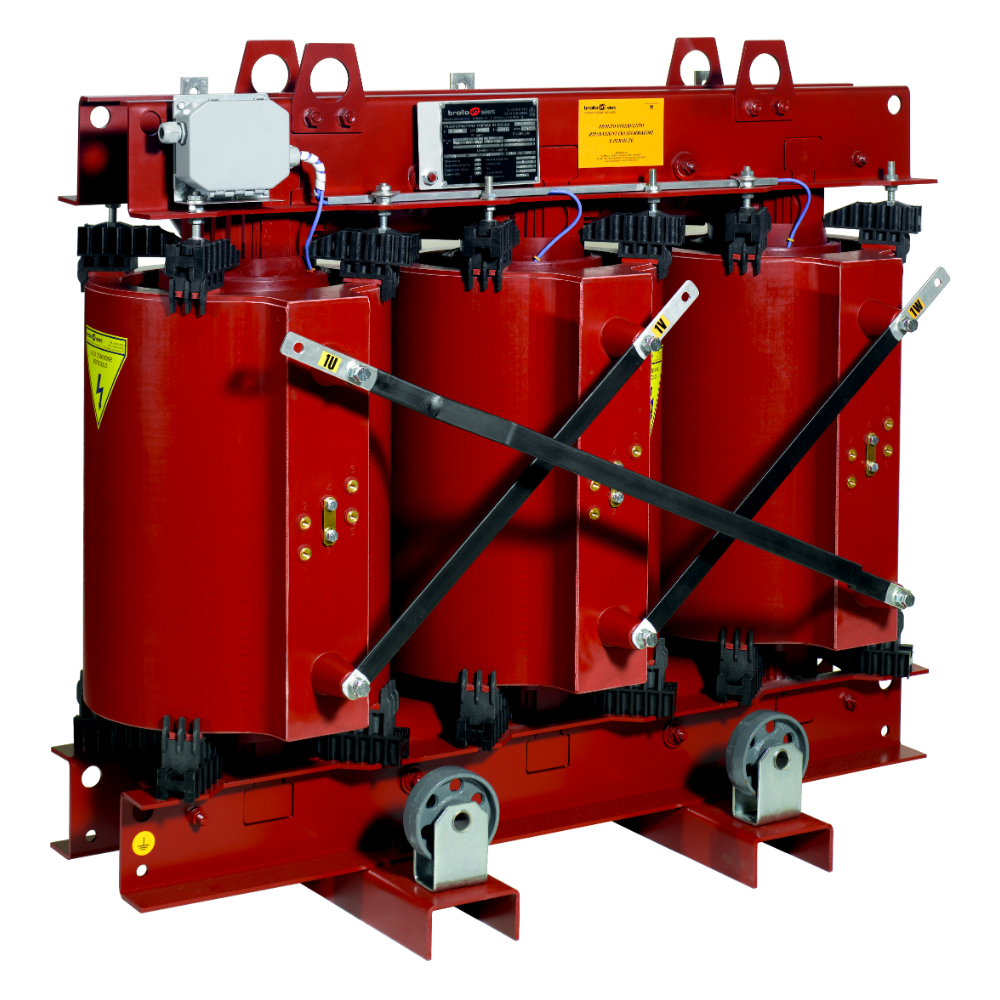

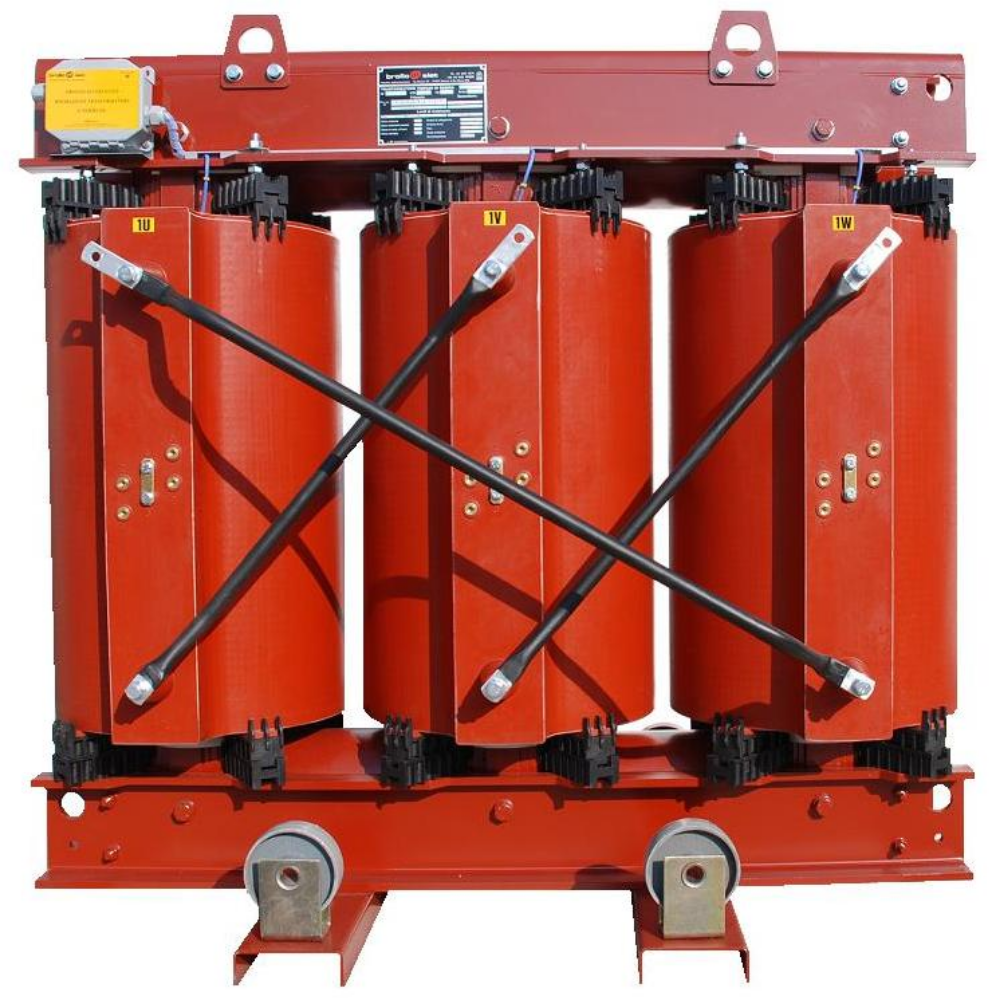

Three-phase dry resin MV transformers
The three-phase dry transformers with windings incorporated in epoxy resin MV / LV comply with the CEI EN 50541-1 2011-11, CEI EN 60076-1-11 standards.
New ECO LINE series with high efficiency and low losses as per EU Regulation 548/2014.
Insulation class from 12 to 24 KV.
Behavioral classes:
F.1 self-extinguishing
C.2 resistant to climatic variations
E.2 resistant to air pollution and humidity, complete with standard accessories.
A wide range of remanufactured transformers is also available in stock.
Characteristics:
• Low risk of pollution
• With reduced maintenance
• Easy to install
• Self-extinguishing F1
• Resistant to climatic variations C2
• Resistant to air pollution and humidity E2
Installation
• Installation also possible near places frequented by people (with wardrobe).
• They do not require tanks or wells for the collection of insulating liquids.
• Planning installations is easier
• Reduced maintenance.
The transformer is supplied complete with 3 PT100 thermoresistances.
Technical features
All transformers are supplied as standard with:
- Carrier insulators for primary connection
- Attachment plates for secondary connections
- Primary voltage regulation terminal block
- Lifting eyebolts
- Trolley with swiveling wheels
- Earthing connections
- Characteristics plate
- Three PT100 thermoprobes
- Auxiliary services centralization box
Customization
- IP20 – IP31 protection cabinet
- Forced ventilation group for 25% increase in power
- Thermometric control unit for temperature control
