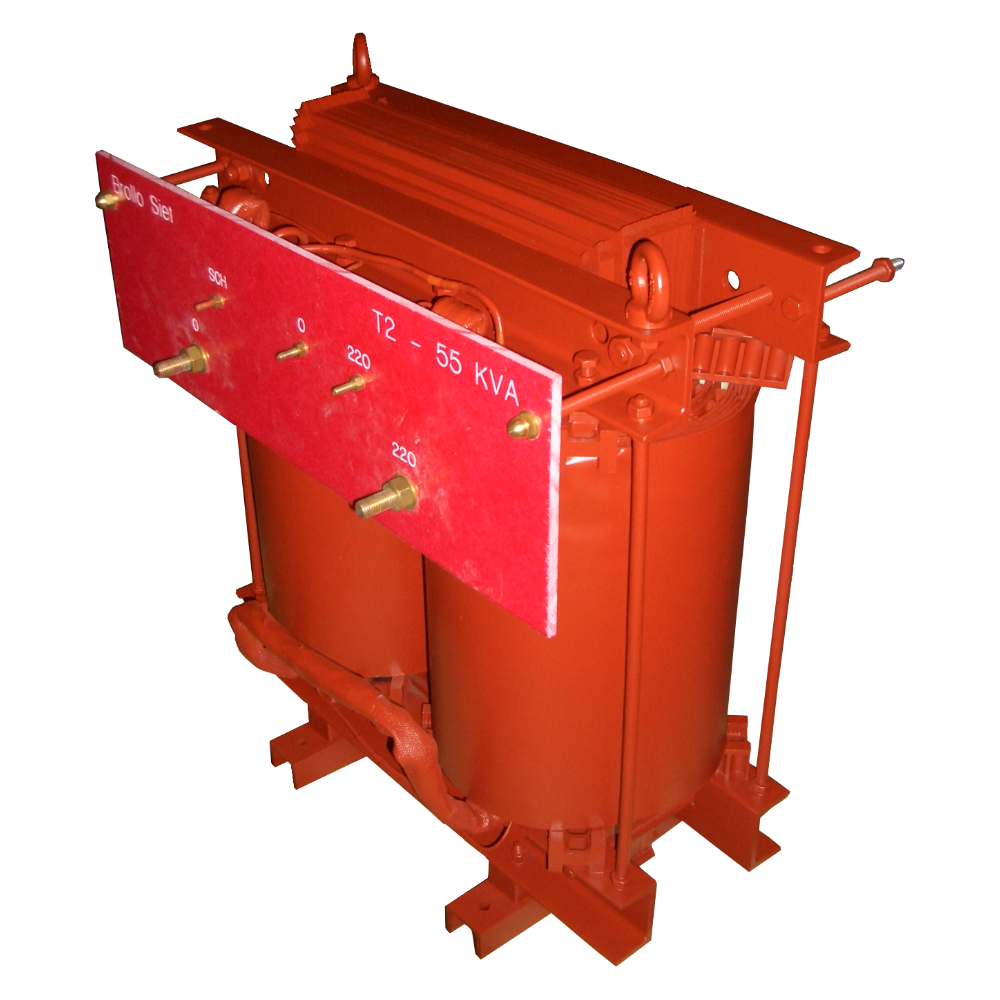

High insulation separation transformers
Technical features
Standard executions in the catalogue:
- Single-phase and three-phase separation transformers (EN 61558-1)
- with insulated primary winding at 16kV
- single-phase series 92 class B execution
- three-phase series 93 class B execution
- continuous service with ambient temperature 40°C
- Other features as per downloadable technical data sheets
Customization
Customized or customer-designed executions with:
- Copper or aluminum windings
- Single-phase power up to 10kVA
- Three-phase power up to 50kVA
- Voltages up to 1000V and frequency 50/60Hz
- Possible. adjustment sockets on both the primary and secondary
- Delta/star connection
- Electrostatic screen as standard
- Thermal protectors or PT100 probes inserted in the windings
- Treatment for humid saline climates
- cURus Insulation System FIS155 File E321488
- Reinforced insulation also for insulation values other than 16kV which can be achieved on both the primary and secondary circuits
- Protection box
