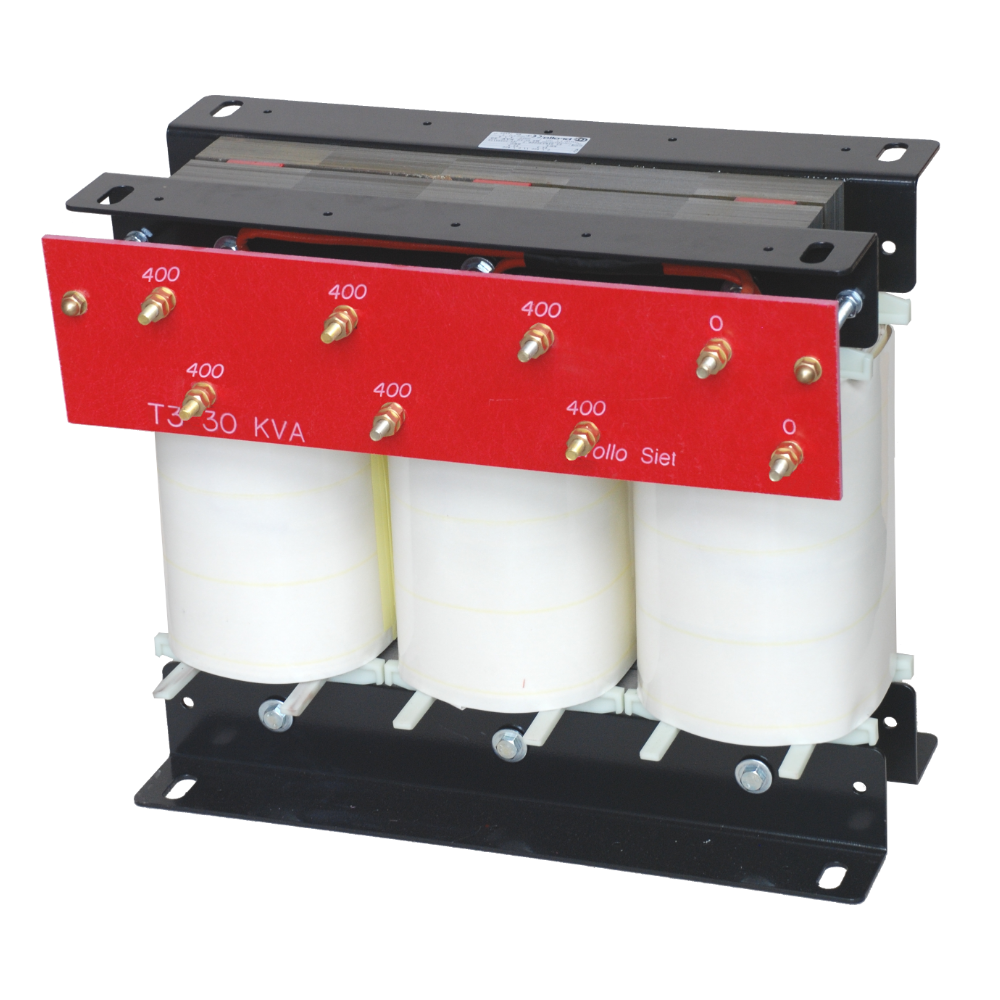

HIGH EFFICIENCY TRANSFORMERS
HIGH EFFICIENCY TRANSFORMERS
Transformers extra low losses for renewable energy
Technical features
Standard executions in the catalogue:
- High efficiency three-phase isolation transformers for renewable energy (EN 61558-1 / 2-4 // EN 60076-11)
- SIFV series execution in class B
- with copper or aluminum windings
- voltages 400 / 400 V with YNyn0 connection
- continuous service with ambient temperature 40°C
- Other features as per downloadable technical data sheets
Customization
Customized executions or based on customer drawings with:
- Copper or aluminum windings
- Power up to 500kVA
- Voltages up to 1000V and frequency 50/60Hz
- Regulation sockets on both primary and secondary
- One or more secondary windings
- Connection of delta / star / zig-zag windings
- Electrostatic screen
- Thermal protectors or PT100 probes inserted in the windings
- Treatment for humid saline climates
- cURus Insulation System FIS155 File E321488
- Protection box
